Compactslot-die coater
Explore our 3D configurator

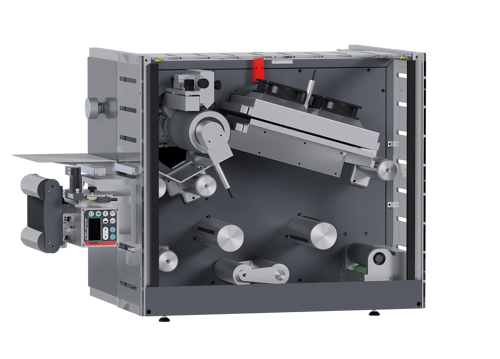

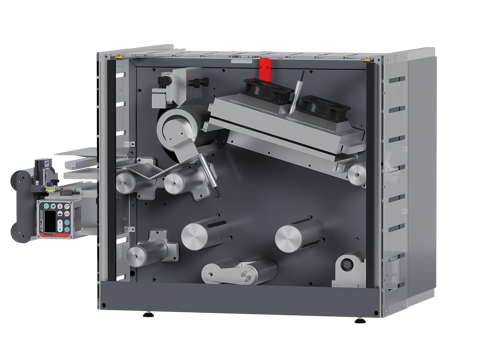

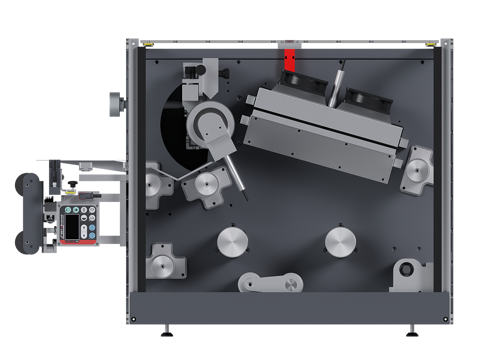

TestCoat - Compact Slot-die Coater

  • A compact and efficient roll-to-roll coater
  • An easy-to-use entry platform for slot-die coating
  • Perfect for seamless integration with glove box
  • Perform coating and curing in a single, integrated process


Compact and Versatile Design for Research Labs:

TestCoat's compact table-top design is an ideal solution for research laboratories with limited space. Despite its size, TestCoat offers uncompromised functionality. It features a single slot-die station, making it easy to coat various functional materials on flexible substrates. The integrated infrared curing section ensures swift and efficient drying, reducing processing time and boosting throughput.

Unparalleled Precision and Control:

TestCoat provides researchers with exceptional control over the coating process. With precise adjustments for coating thickness, speed, and other essential parameters, you can achieve uniform coatings for a wide range of functional materials. This precision guarantees accurate and reproducible results, enhancing the reliability of your research findings.

Expand Research Possibilities:

TestCoat's versatility opens up new research possibilities. With its slot-die station, you can explore a wide array of functional materials, including conductive inks, adhesives, coatings, and more. The infrared curing section ensures efficient and controlled drying, supporting various coating processes. TestCoat empowers you to conduct comprehensive experiments and investigate different material formulations and coating parameters.

Expert Support and Guidance:

At GM, we recognize the significance of comprehensive support for researchers. Our dedicated team of experts is committed to providing the guidance and assistance required to maximize TestCoat's potential. We offer comprehensive training, ongoing technical support, and maintenance services to ensure peak performance and minimize downtime. Your success remains our top priority.

Experience the Power of TestCoat:

Overcome space constraints and unleash the full potential of your research with TestCoat, the compact table-top roll-to-roll slot-die coating machine designed for functional materials research. Elevate precision, accelerate experiments, and broaden your research horizons. Contact us today to discover more about TestCoat and elevate your research to new heights.

Compact Size

The TestCoat boasts a compact design with a 15cm web width and 60x60cm cabinet size, ideal for tabletop placement and glovebox integration.

Slot-die Coating

Experience high-precision slot-die coating featuring vertical and cross-web adjustments for exceptional control.

Precise Curing

Benefit from integrated IR curing with precise temperature control and regulation for optimal results.

Roll-to-Roll or Loop Functions

Choose between two web functions: roll-to-roll or loop, expanding flexibility in your coating process.

Watch our tutorials

Technical Specifications

Specifications Metric Imperial
Web width 50 - 150 mm 0.4 - 5.9”
Substrate 50 - 200 µm 2 - 8 pt.
Max. unwind 240 mm 9.5”
Unwind core diameter 76,2 or 152,4 mm 3 or 6”
Max. rewind 240 mm 9.5”
Rewind core diameter 76,2 or 152,4 mm 3 or 6”
Power/ Air 240V + N + PE, 16A, 6 bar
Dimensions (W x D x H) 1,1 x 0,7 x 0,7 mm
