Advanced Laser Technologyfor Functional Materials
Explore our 3D configurator

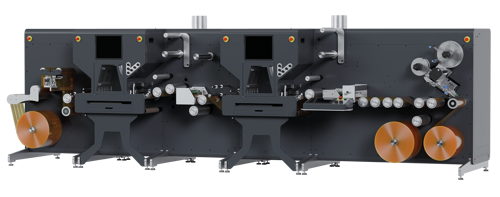

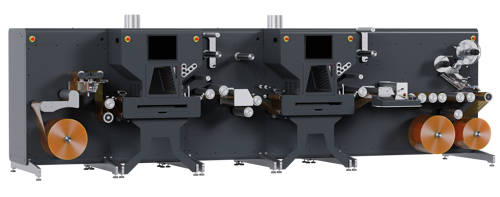

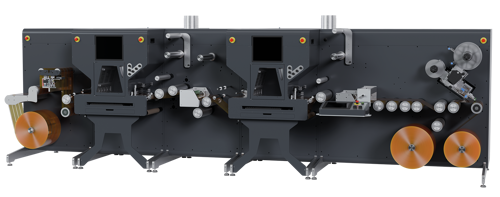

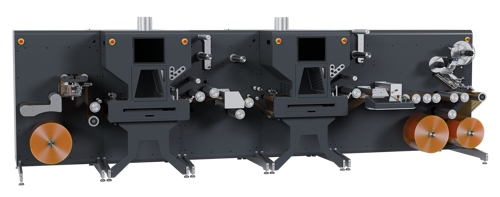

R2R Laser Cutting Platform

  • Fully digital mirror system for superior laser cut quality
  • High-performance LUXINAR CO2 laser sources
  • Nano-, pico-, and femtosecond laser sources available
  • Fully modular platform for custom configuration


Laser Technology in Functional Materials

Laser technology has transformed various industries, including functional materials. Roll-to-Roll (R2R) laser machines have gained attention for their versatility and efficiency in fabricating and modifying functional materials.

Revolutionizing Industries

Flexible Electronics: R2R laser machines precisely ablate and pattern conductive materials, creating flexible circuits for applications like flexible displays, wearable tech, and smart packaging.

Thin-Film Solar Cells: Laser-based R2R processes enhance solar cell efficiency and reduce production costs by selectively scribing and cutting photovoltaic materials.

Sensors: R2R laser machines create microstructures and patterns for various sensor types, including gas and biosensors.

Laser Precision for Efficiency

High-Speed Processing: R2R laser machines increase productivity and reduce costs by processing materials at high speeds.

Precision: Laser technology enables intricate pattern and structure creation, crucial for advanced technologies using functional materials.

Material Versatility: R2R laser machines work with a wide range of materials, resulting in minimal waste and cost-effective, eco-friendly processing.

Innovation in Functional Materials

GM Functionals' laser platform revolutionizes functional materials processing, offering high throughput, precision, and flexibility. This versatile solution spans industries like flexible electronics, solar energy, and sensors, accommodating various laser sources, from CO2 to nano-, pico-, and femtosecond lasers. With intuitive controls and decades of laser application experience, it sets the standard for functional material laser processes.

Achieve waste-free processing with precise cut-feedback loops and comprehensive control over speed and cut depth using GM's laser control software.

Enhanced Flexibility and Automation

Our platform provides flexibility, precision, repeatability, speed, cost-efficiency, quality, versatility, and automation benefits. With AutoKnives, we elevate this further by enabling 100% tool-free production.

Tool-Free and Zero Setup Time

Say goodbye to downtime for mechanical die setups and expand your design possibilities with intricate, high-accuracy arrangements.

Day-to-day delivery

Effortlessly upload your tasks to our Laser Platform for quick and precise cutting. Adjust on the fly for swift execution, and save and recall job settings for future convenience.

Seamless Job Changes on the Fly

Switch jobs without stopping the machine. Our automated software handles it, saving time, reducing waste, and eliminating costly tooling expenses.

Watch our tutorials

Technical Specifications

Specifications Metric Imperial
Web width 50 – 350 mm 2 – 13.8”
Substrate thickness 20 – 200 µm 0.8 – 8 pt.
Max machine speed  72 m/ min 236 ft/ min
Laser Die
Power  175 W, 250 W or 350 W
Laser Type Sealed, single head pulsed CO2
Diameter max. 700 mm 27.6”
Core diameter 76,2 or 152 mm 3 or 6”
Diameter max. lower rewind 600 mm 23.6”
Core diameter 25,4 – 152,4 mm 1 – 6”
Flexo Station
Varnishing roller 254 – 635 mm 10 – 25”
Spot varnish option with registration and slow run
Slitting Station
Knife type Pneumatic crush, shear, razor or AutoKnives
Minimum distance crush 12,7 mm 0.5”
Minimum distance shear  14 mm 0.55”
Minimum distance AutoKnives 15,5 mm 0.61”
W x D x H 3,5 x 2,9 x 2,2 m 11.6 x 9.4 x 7.1 ft
