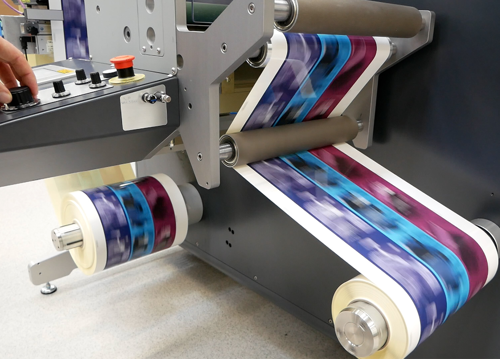

GM Functionals LaminationOPV Solar Cell Optimization
Explore our 3D configurator

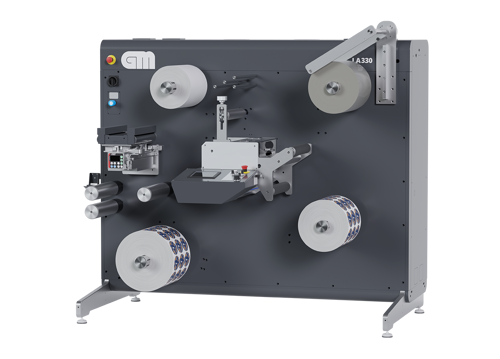

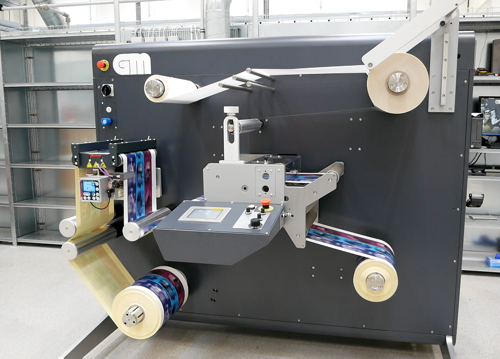

R2R Lamination Platform

  • Real-time temperature and pressure monitoring and adjustment
  • Maintains precise, consistent lamination temperature
  • Ensures optimal material bonding
  • Accommodates various heat sources to suit OPV material needs

Characteristics

Solar Precision

The GM Functionals Lamination Platform is tailor-made for organic photovoltaic (OPV) solar cell lamination. This intricate process demands several vital capabilities to ensure efficient and high-quality production of these advanced energy solutions.

Optimizing Lamination Quality

Real-time monitoring and adjustment of parameters like temperature and pressure are indispensable for maintaining lamination quality and preventing defects. Maintaining a precise and consistent temperature during lamination is paramount for ensuring proper material bonding, as temperature variations can lead to defects and hinder cell performance.

Flexible Precision

The platform offers adjustable pressure settings to accommodate different materials and lamination processes, ensuring uniform adhesive distribution and minimizing the risk of air bubbles or delamination. Dwell time, defining the duration of material contact under heat and pressure can be customized to suit various materials and thicknesses.

Innovative Versatility

The GM Functionals Lamination Platform is versatile, accommodating various heat sources, including infrared (IR) radiation and hot rollers, tailored to meet the specific requirements of OPV materials without causing any damage. Innovative features are incorporated to ensure proper material handling and alignment during the lamination process, preventing misalignment and ensuring consistent lamination quality.

Flexible Lamination

The machine offers customizable pressure settings to meet the specific requirements of different materials and lamination processes.

Beauty and Protection

Machine innovations ensure proper material handling and alignment for consistent lamination quality.

Watch our tutorials

Technical Specifications

Specifications Metric Imperial
Web width 330 mm 13” (other sizes on request)
Max speed  70 m/min 300 ft/min
                                             *The higher speed is possible on request
Web guide BST Ultrasonic
Max unwind diameter 600 mm (800 mm optional) 23.6" (31.5" optional)
Max rewind diameter 500 mm standard 19.7”
Rewind torque 10 - 100 Nm, adjustable on the front panel
Max roll size 250 mm 9.8”
Dimensions
W x D x H 2,8 x 1,4 x 1,7 m 9.2 x 4.6 x 5.6 ft
UV System GEW Air cooled
Dimensions
W x D x H  7,2 x 1,3 x 1,8 m 23.6 x 4.1 x 5.9 ft
